MAKE YOUR OWN ASSAULT ON THE WIND
*Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2017 and 2018 models.

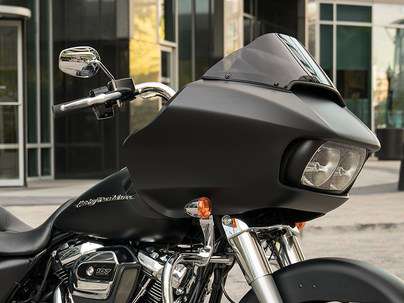

Frame-Mounted Shark Nose Fairing
Dual Daymaker™ Reflector LED Headlamps
Milwaukee-Eight® V-Twin Engine
Reflex™ Linked Brembo® Brakes with Standard ABS
Premium BOOM!™ Box 6.5 Infotainment System
- Vivid Black $36,495AUD
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111.1 mm
- Displacement 1,745 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
- Length 2,430 mm
- Seat Height, Unladen 695 mm
- Ground Clearance 140 mm
- Rake (steering head) (deg) 26
- Trail 173 mm
- Wheelbase 1,625 mm
- Tyres, Front Specification 130/60B19 61H
- Tyres, Rear Specification BW 180/65B16 81H
- Fuel Capacity 22.7 l
- Oil Capacity (w/filter) 4.9 l
- Weight, As Shipped 372 kg
- Weight, In Running Order 388 kg
- Luggage Capacity -Volume 0.064 m3
- Engine Torque Testing Method J1349
- Engine Torque 3 150 Nm
- Engine Torque (rpm) 3,250
- Lean Angle, Right (deg.) 31
- Lean Angle, Left (deg.) 29
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.593
- Gear Ratios (overall) 2nd 6.65
- Gear Ratios (overall) 3rd 4.938
- Gear Ratios (overall) 4th 4
- Gear Ratios (overall) 5th 3.407
- Gear Ratios (overall) 6th 2.875
- Wheels, Front Type Enforcer Cast Aluminium
- Wheels, Rear Type 7 Enforcer Cast Aluminium
- Brakes, Caliper Type 32 mm, 4-piston fixed front and rear
- Lights (as per country regulation), Indicator Lamps 6 High beam, running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, speakers, accessory, security system, gear indication, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator
- Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
- Infotainment system Boom!™ Box 6.5GT
- Type Color
- Watts Per Channel 25
- Speakers 2
- Speaker Size 5.25 inch standard
- Headset Specifications (if equipped) 16-64 ohms
- FM Standard
- MW Standard
- LW Standard
- SD Card, Flash Drive and MP3 - via USB Connection Supported
- Lauguages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
- Hands-free Mobile Phone - via Bluetooth Standard
- Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese"
- Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
- Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
- Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
- USB USB/MTP/iPod/iPhone
- Bluetooth Phone/Media Supported
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2017 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.
Hard Candy Shattered Flake
Hard Candy Chameleon Flake
