A STREET EATING MACHINE WITH TUCKED IN, FAST BACK STYLE AND CORNER CRANKING TORQUE
*Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2017 and 2018 models.

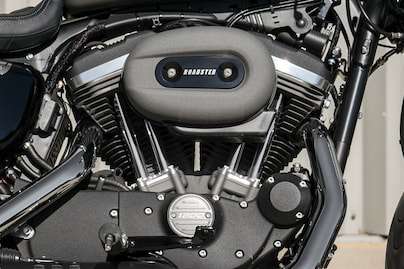

1200 cc Air-Cooled Evolution™ Engine
Slammed Handlebars and New Gauge
43mm Front Suspension with Inverted Forks
Dual Disc Front Brakes with Floating Rotors
Aggressive and Comfortable Two-Up Seat
Light-Weight Offset Split 5-Spoke Wheels
- Vivid Black $19,495AUD
- Engine 2 Air-cooled, Evolution™
- Bore 88.9 mm
- Stroke 96.8 mm
- Displacement 1,202 cc
- Compression Ratio 10:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields
- Length 2,185 mm
- Seat Height, Unladen 785 mm
- Ground Clearance 150 mm
- Rake (steering head) (deg) 28.9
- Trail 140 mm
- Wheelbase 1,505 mm
- Tyres, Front Specification 120/70R19 M/C
- Tyres, Rear Specification 150/70R18 M/C
- Fuel Capacity 12.5 l
- Oil Capacity (w/filter) 2.6 l
- Weight, As Shipped 250 kg
- Weight, In Running Order 259 kg
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 98 Nm
- Engine Torque (rpm) 3,750
- Lean Angle, Right (deg.) 30.8
- Lean Angle, Left (deg.) 31.1
- Primary Drive Chain, 38/57 ratio
- Gear Ratios (overall) 1st 9.315
- Gear Ratios (overall) 2nd 6.653
- Gear Ratios (overall) 3rd 4.948
- Gear Ratios (overall) 4th 4.102
- Gear Ratios (overall) 5th 3.517
- Wheels, Front Type Black Offset, Split 5-Spoke Cast Aluminium
- Wheels, Rear Type 7 Black Offset, Split 5-Spoke Cast Aluminium
- Brakes, Caliper Type Dual-piston front, Dual-piston rear
- Lights (as per country regulation), Indicator Lamps 6 High-beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system
- Gauges Dual Gauge – 4 “Digital Speedometer / Analog Tachometer
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2017 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.
Corona Yellow Pearl
Electric Blue / Silver Fortune
Industrial Gray Denim / Black Denim
