EVERYTHING YOU LOVE ABOUTH-D® TOURING, ONLY ON THREE WHEELS
*Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2017 and 2018 models.

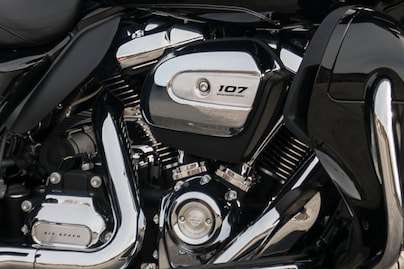

Milwaukee-Eight® V-Twin Engine
Premium BOOM!™ Box 6.5 Infotainment System
6-Speed Cruise Drive® Transmission
Trunk and King Tour-Pak™ Storage
Daymaker™ LED Headlamp and LED Foglamps
Batwing Fairing & Splitstream Air Vent
- Vivid Black $50,995AUD
- Anniversary Color $52,250AUD
- Engine 2 Twin-Cooled™ Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111.1 mm
- Displacement 1,745 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
- Length 2,670 mm
- Seat Height, Unladen 735 mm
- Ground Clearance 125 mm
- Rake (steering head) (deg) 26
- Trail 100 mm
- Wheelbase 1,670 mm
- Tyres, Front Specification MT90B16 72H
- Tyres, Rear Specification P205/65R15 92T
- Fuel Capacity 22.7 l.
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 546 kg
- Weight, In Running Order 564 kg
- Luggage Capacity -Volume 0.19 m3
- Engine Torque Testing Method J1349
- Engine Torque 3 152 Nm
- Engine Torque (rpm) 3,750
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 10.534
- Gear Ratios (overall) 2nd 7.302
- Gear Ratios (overall) 3rd 5.423
- Gear Ratios (overall) 4th 4.392
- Gear Ratios (overall) 5th 3.741
- Gear Ratios (overall) 6th 3.157
- Wheels, Front Type Black, 7-spoke Cast Aluminium
- Wheels, Rear Type 7 Black, 7-spoke Cast Aluminium
- Brakes, Caliper Type 6 piston fixed front with 4-31.75 mm front pistons and 2-25.4 mm linked rear pistons, 31.75mm single piston floating rear
- Lights (as per country regulation), Indicator Lamps 6 High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, gear indication, low fuel warning, reverse, park brake, miles to empty display, fog/aux lamp indicator
- Gauges 10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light
- Infotainment system Boom!™ Box 6.5GT
- Type Color
- Watts Per Channel 25
- Speakers 4
- Speaker Size 5.25 inch/6.5 inch P&A Upgrade
- Headset Specifications (if equipped) 16 - 64 ohms
- AM Standard
- FM Standard
- SD Card, Flash Drive and MP3 - via USB Connection Supported
- Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
- Hands-free Mobile Phone - via Bluetooth Standard
- Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
- Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
- Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
- USB USB/MTP/iPod/iPhone
- Bluetooth Phone/Media Supported
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2017 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.

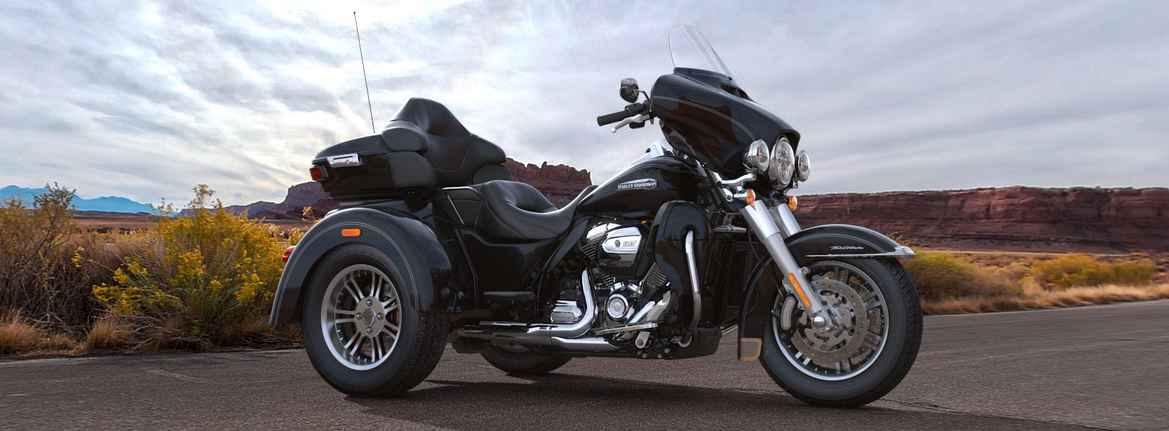

TRI GLIDE ULTRA
Silver Fortune / Sumatra Brown
Wicked Red / Twisted Cherry
Twisted Cherry / Silver Fortune
Legend Blue / Vivid Black
