ULTRA LIMITED
EXPERIENCE A RIDE THAT IS ANYTHING BUT STANDARD
It's loaded. From the new Milwaukee-Eight® 114 engine to the heated hand grips. Classic Batwing fairing, all new BOOM!™ GTS infotainment system, and plenty more. Yes, you can have it all.
Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.

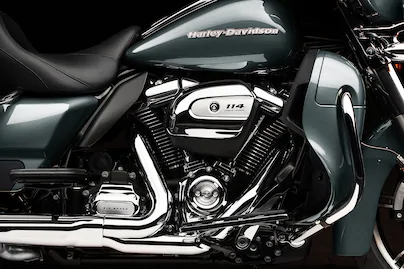

Milwaukee-Eight® 114 Engine
The most displacement in standard H-D® Touring models. You get 1,868 cc of passing and horizon-chasing power.
Reflex™ Linked Brembo® Brakes with Standard ABS
Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.
Reflex™ Defensive Rider Systems (RDRS)
A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.
BOOM!™ Box GTS Infotainment System
An evolved interface experience that offers a contemporary look, feel and function of the latest mobile devices and tablets, with exceptional durability and features designed specifically for motorcycling. Every element is optimised to enhance the rider's interaction with the bike and connectivity with the world.
Heated Handgrips
Equipped with six settings, so you can easily adjust on the fly for the heat you need.
Electronic Cruise Control
Set your own speed on the 6-speed cruise drive™ Transmission. It provides smooth, quiet shifting and adapts to whatever terrain you're riding on.
Batwing Fairing & Splitstream Air Vent
Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.
Responsive Suspension
High-performing front and rear suspension with easily adjustable rear shocks put you in control of a plush ride.
Premium Tour-Pak™ Luggage Carrier
A sleek yet spacious Tour-Pak™ luggage carrier that can easily house both rider and passenger helmets along with extra travel essentials.
One-Touch Opening Saddlebags
Tight on the outside, roomy on the inside. The hinges are simple and clean and the lids open with one touch of one hand.
- Milwaukee-Eight® ENGINE :
- 114
Pricing5
- Vivid Black $41,495AUD
Engine
- Engine 2 Twin-Cooled™ Milwaukee-Eight™ 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
Dimensions
- Length 2,600 mm
- Seat Height, Unladen 740 mm
- Ground Clearance 135 mm
- Rake (steering head) (deg) 26
- Trail 170 mm
- Wheelbase 1,625 mm
- Tyres, Front Specification BW 130/70B18 63H
- Tyres, Rear Specification BW 180/55B18 80H
- Fuel Capacity 22.7 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 399 kg
- Weight, In Running Order 416 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 164 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 32
- Lean Angle, Left (deg.) 32
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.593
- Gear Ratios (overall) 2nd 6.65
- Gear Ratios (overall) 3rd 4.938
- Gear Ratios (overall) 4th 4
- Gear Ratios (overall) 5th 3.407
- Gear Ratios (overall) 6th 2.875
Chassis
- Wheels, Front Type 7 Slicer II cast aluminum with clear coat
- Wheels, Rear Type Slicer II cast aluminum with clear coat
- Wheels, Optional Style Type Gloss Black Slicer II
- Brakes, Caliper Type 32 mm, 4-piston fixed front and rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxiliary lighting, cruise, ABS, immobiliser, low battery voltage, low fuel warning.
- Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria.
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.
